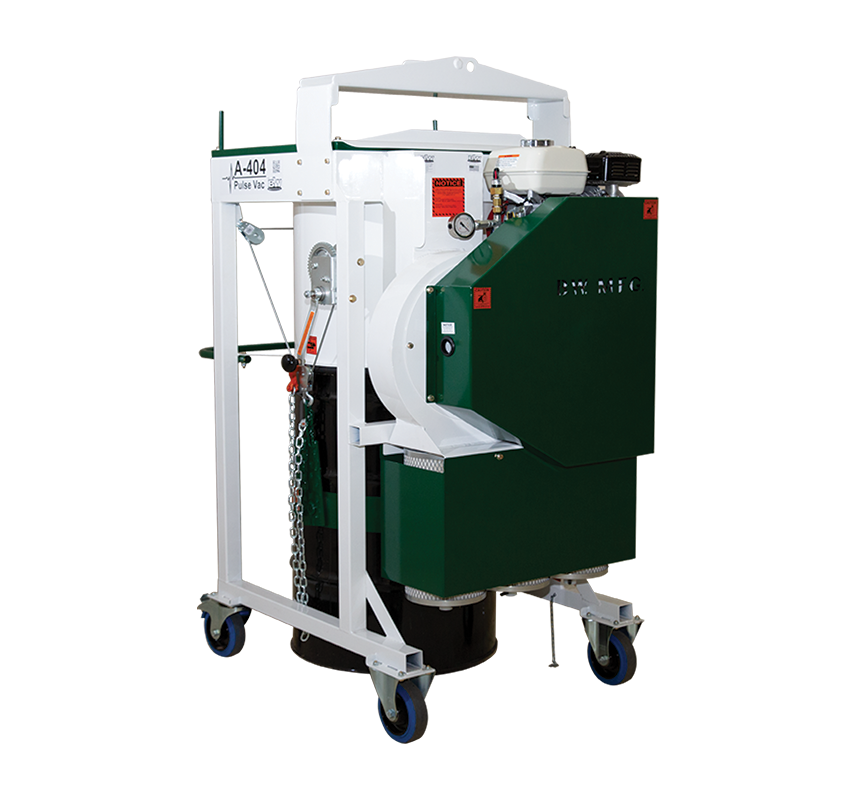

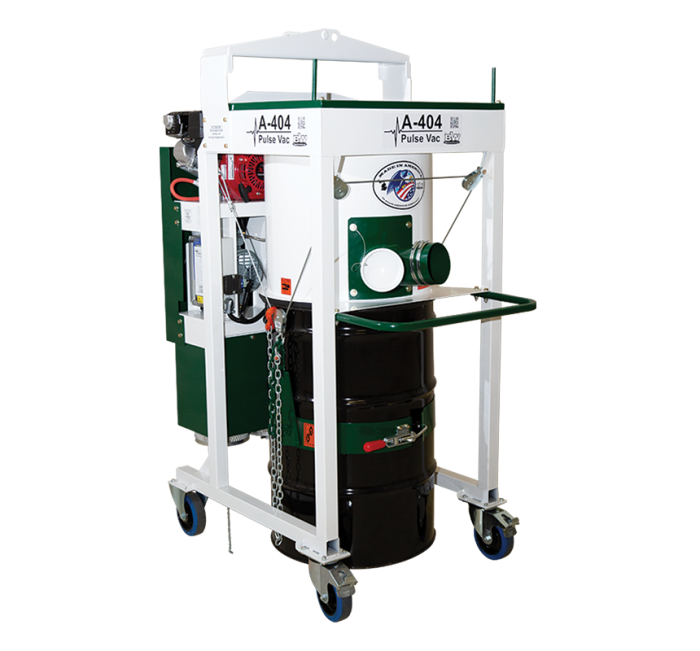

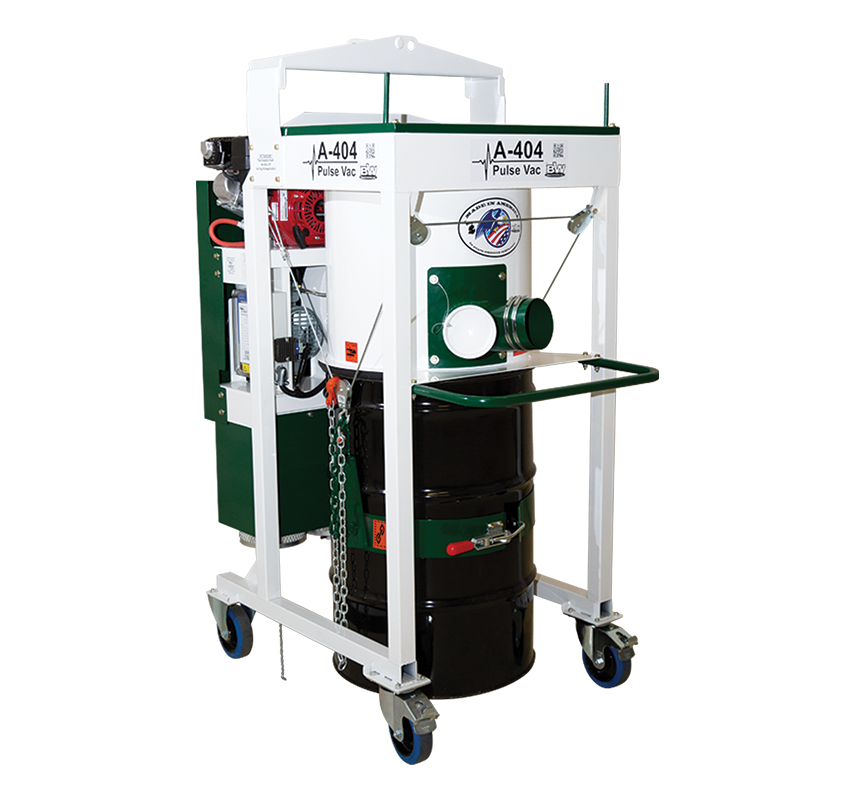

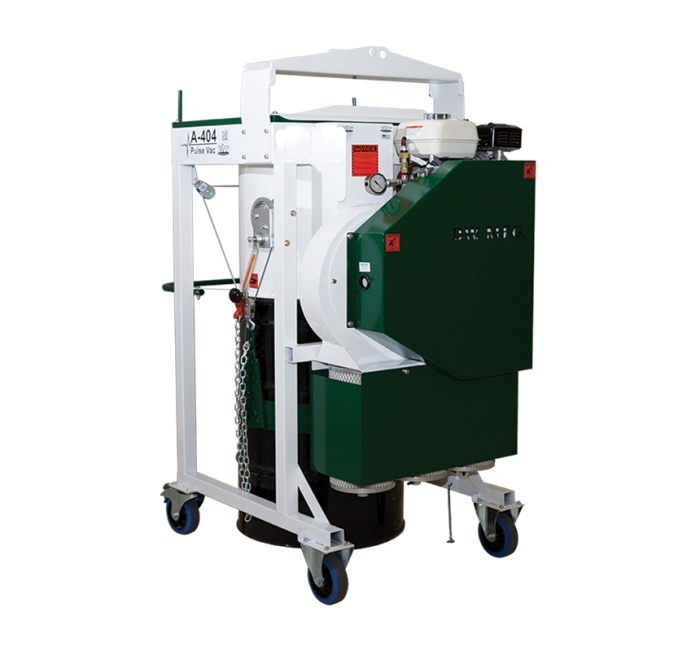

A-404 Pulse Vac

SKU: A-404 Category:

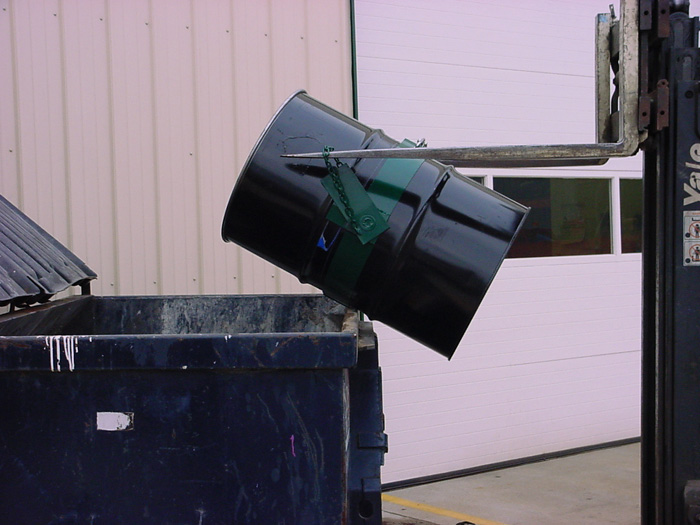

The A-404 Pulse Vac has been designed for the contractor who requires a larger amount of dust containment, automatic filter pulsation, and a high CFM. The A-404 utilizes a 55-gallon drum that can contain up to 1000 lbs. of material, and with the optional Drum Liner, the material can be disposed of quickly and properly. The A-404 offers two 5” inlet ports, along with optional motor choices between a 5.5HP Honda gas engine and a 220V Electric motor, expand the versatility of the vacuum.

The field-tested, and proven pulsation control is designed for maximum productivity in the field. And with a reversed charge of compressed air, the filters are alternately pulsed clean every 10-15 seconds ensuring the A-404 has a continuous vacuum.

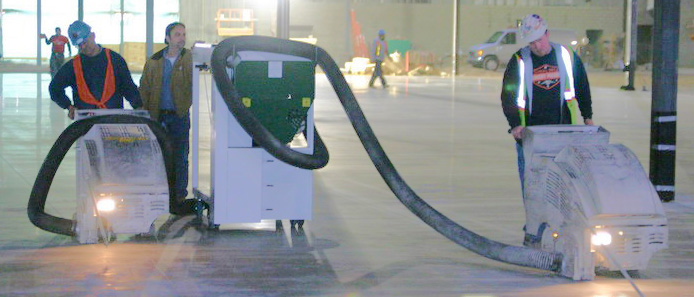

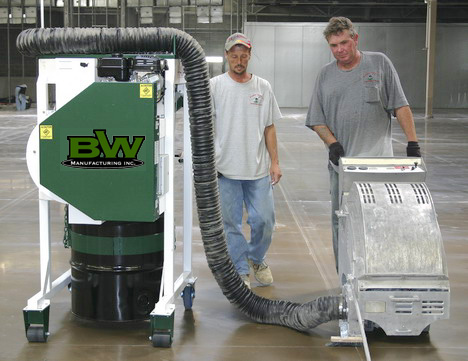

With your reduction in filter cleaning labor, adaptability to all shrouded equipment, and rugged construction make the A-404 a perfect fit for your dust containment needs.

  • Built-in Compressed Air Filter Pulsation
  • MERV16 Rated-99.7% @ .3 Microns Main Filters
  • 5.5hp Honda Gas Engine (220V Optional)
  • 18” H2O Lift (sealed)
  • 1175 CFM @ one 5” (Certified under Project# 17-161)

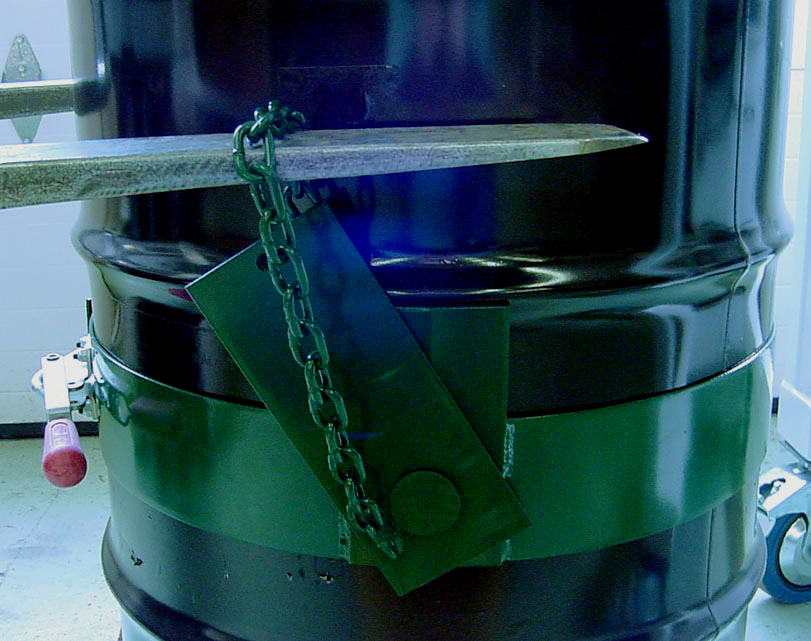

  • 55 Gallon Drum (1000lbs. Capacity)
  • Two 5” Inlets

Specification Sheet

Construction: Powder Coated Steel
Vacuum Hose: 5″ x 15′ Wire Reinforced
Motor Options: 5hp 220 Volt Single Phase (18 Amp Draw)(BUILT TO ORDER)
5.5hp Gas (Honda)
Compressor: 2.5 cfm Air Cooled – Oil-less
Height: 61″ (155cm)
Length: 42″ (107cm)
Width: 34″ (87cm)
Weight: 590 LBS (268kgs)
Wheels: 2 @ 8″ Rubber Stationary Casters
2 @ 8″ Rubber Swivel Casters
Primary Filtration (Specially Designed Pleated Cartridge):  #10129-H  Spun Bond W/PTFE Coating (Standard Filter in all BW Manufacturing equipment)

SpunBond P.T.F.E., 70 pleats, 31 Sq. Ft media.

Efficiency of 99.7% @ .03 Microns (Minimum Efficiency Rating Value (MERV) 16 Rating – Out of the box)

#10129-B Cellulose Paper/Polyester Blend Filter (Optional Replacement Filter)

80/20 Blend, 120 pleats, 53 Sq. Ft media.

Efficiency of 99.9% @ 1 Micron with a seasoned ( caked ) filter.

Vacuum Chart

Model Port Size CFM Inches Of Lift
A-404 (Gas or Electric) Sealed 0 18.2
A-404 (Gas or Electric) 1 @ 5″ 1175 3.0
A-404 (Gas or Electric) 2 @ 5″ 620 Each Port 1.5


All testing has been completed in a controlled environment at BW Manufacturing by Great Lakes Balancing using a Shortridge Airdata Multimeter – Model# ADM 860 on November 28th, 2017 and measured at the neck of each vacuum.

These figures should be used as a reference only.
