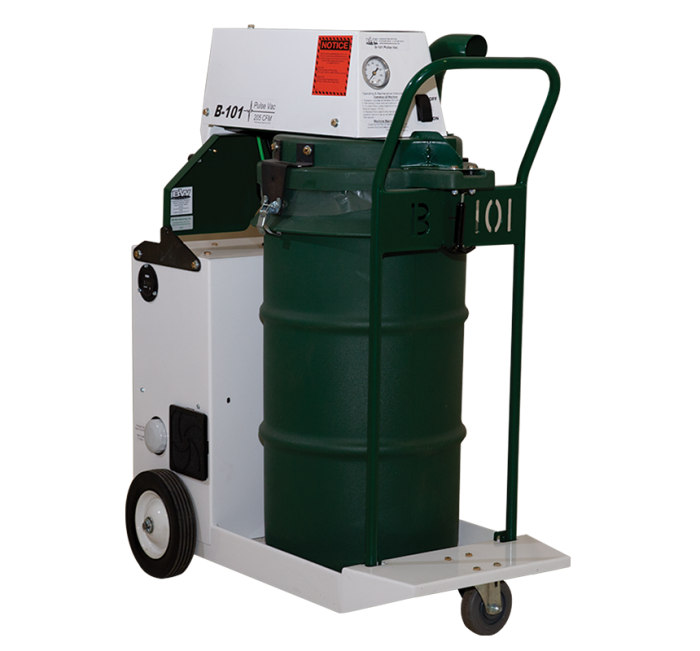

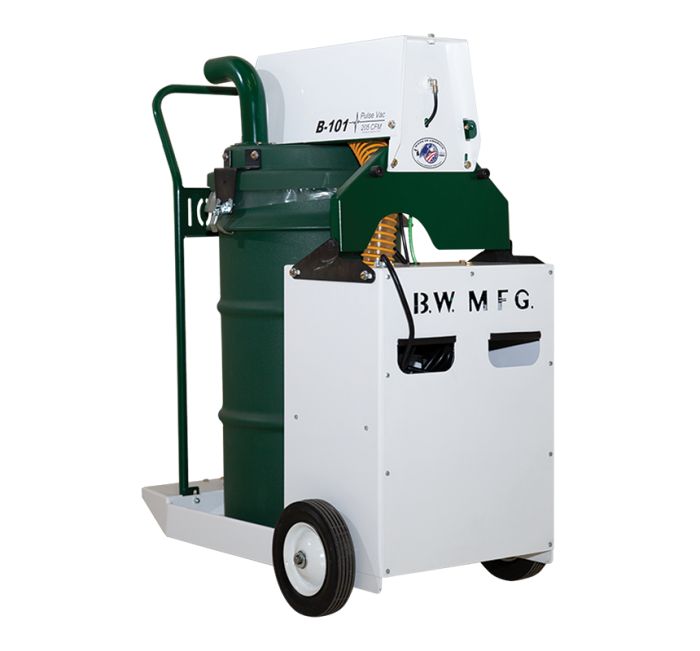

B-101 Pulse Vac

The B-101 Pulse Vac is unlike any other vacuum on the market today. The built-in air filter pulsation system continuously cleans the air filter, making it ideal for the removal of fine dust powders without clogging. It houses twin vacuum motors and an onboard air compressor only drawing 16 Amps at 120V. Your reduction in filter cleaning labor combined with its adaptability to all shrouded equipment.

The most essential and recommended vacuum by contractors today.

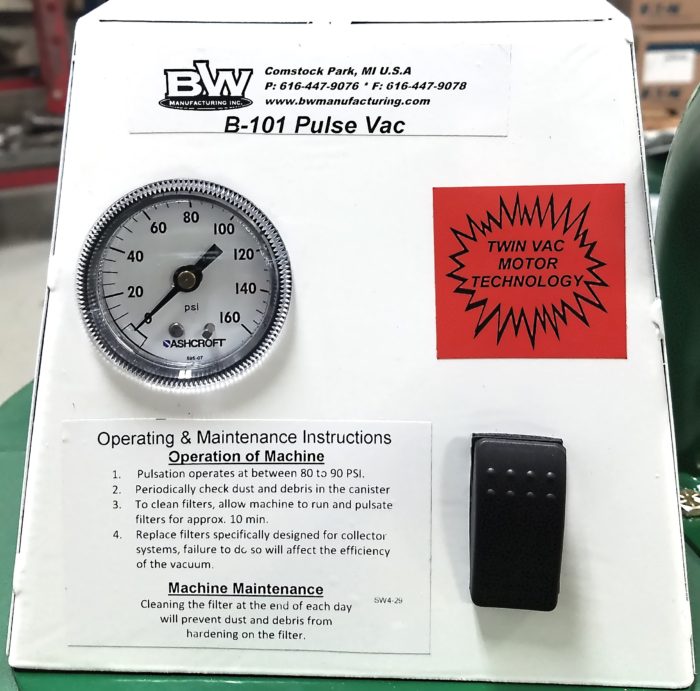

  • Built-in Compressed Air Filter Pulsation
  • MERV16 Rated Main Filter
  • 120 Volt
  • Twin Vac Motors
  • 16 Amp draw
  • 89” H2O Lift (sealed)
  • 205 CFM @ 2”
  • Durable Plastic Drum
  • Replaceable Drum Liner

Specification Sheet

Construction: Plastic 16 Gallon Drum
Powder Coated Steel Body
Vacuum Hose: 2″ x 20′
Vacuum Motor: 120 Volts (16 Amp Draw)
Compressor: 120 Volt
Height: 36″ (91cm)
Length: 29″ (74cm)
Width: 15″ (38cm)
Weight: 115 LBS (52kgs)
Wheels: 2 @ 8″ Rubber Wheels
1 @ 4″ Swivel Caster
Primary Filtration (Specially Designed Pleated Cartridge): #10129-H  Spun Bond W/PTFE Coating (Standard Filter in all BW Manufacturing, Inc. equipment):

SpunBond P.T.F.E., 70 pleats, 31 Sq. Ft media.

Efficiency of 99.7% @ .03 Microns (Minimum Efficiency Rating Value (MERV) 16 Rating – Out of the box)

 #10129-B Cellulose Paper/Polyester Blend Filter (Optional Replacement Filter)

80/20 Blend, 120 pleats, 53 Sq. Ft media.

Efficiency of 99.9% @ 1 Micron with a seasoned ( caked ) filter.

Vacuum Chart

Model Port Size CFM Inches of Lift
A-101 (Electric) Sealed 0 120.0″
A-101 (Electric) 1 @ 2″ 205 3.0″

All specifications are taken directly from the vacuum motors manufacture specification sheet.
These figures should be used as a reference only.
