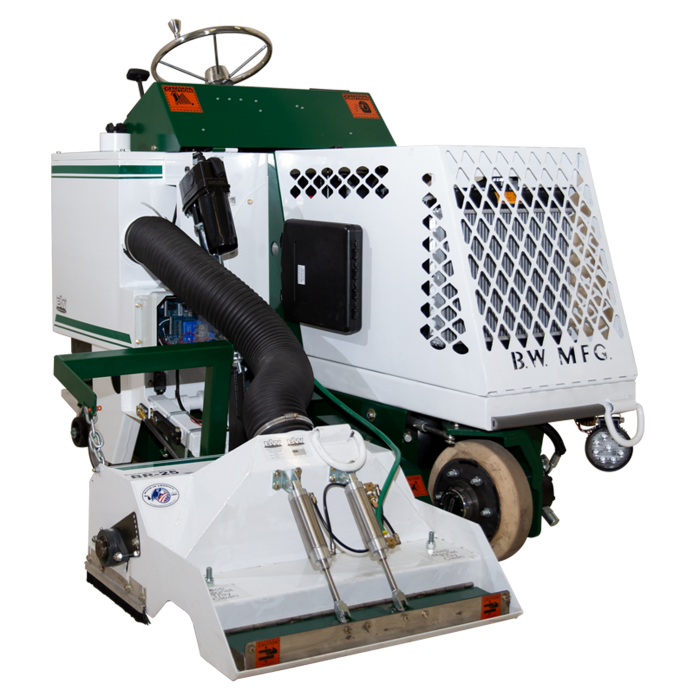

BR-25 Magnet/Broom Head Attachment (for SCB-1200-K)

SKU: BR-25 Category: Tag:

The SCB-1200-BR-25 Magnet Broom is a self-contained magnet, brush, and vacuum attachment all in one. The BR-25 assists you with quick and easy cleaning of floors, driveways, sidewalks, parking lots, warehouses, and aisle ways. The BR-25 efficiently sweeps and vacuums up dirt and debris from the floor while the front magnet picks up all-metal material. The BR-25 Magnet Broom replaces manual labor, hand brooms, and walk behind magnetic sweepers, allowing you to clean a large area with less effort and in less time.

Chassis Specification Sheet

Optional Interchangeable Heads: BH-12 Shotblast Head
SC-12 Scarifier Head
DG-25 Diamond Grinder/Polisher Head
BR-25 Magnet/Broom Head
Tires: Non-Marking
Length: 81″ (206cm)
Width: 35″ (89cm)
Height: 54″ (137cm)
Weight: 1200 LBS (544kgs)
Motor Options: Kubota DH902 Tier IV Diesel 24.8hp
Electric Motor 25HP (230V-64Amp/480V-32Amp Three Phase)
Drive: Hydrostatic
Compressor: 4.5 cfm
Vacuum: 1480 cfm
Steering: Manual
Collector Capacity: 3.8 Cubic Feet
Minimum Aisle Width: 54″ (137cm) (Blastable or Grindable Width)

Magnet/Broom Specification Sheet

Cleaning Path: 25″ (64cm)
Side Sweep Clearance To Wall: 3″ (8cm)
Front Sweep Clearance To Wall: 22″ (56cm)
Wheels: 3 @ 3-1/5″ (8.89cm) Swivel
Overall Width With Attachment: 51″ (130cm)
Weight: 150lbs (68kgs)
Seal System: Brushes
Magnet Size: 25″ (64cm)
  • Warehouse Floors
  • Garage Floors
  • Industrial Floor Cleaning
  • Driveways
  • Walkways
  • Aisle Ways
