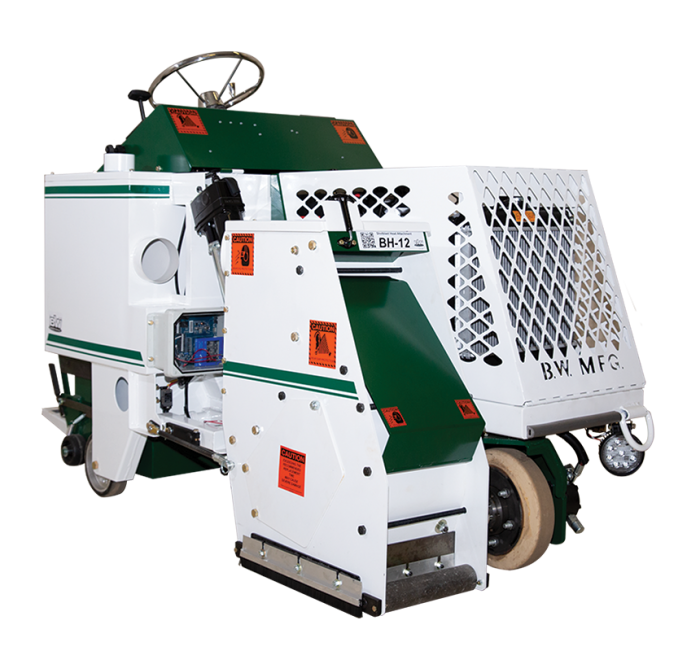

BH-12 Shot Blasting Head Attachment (for SCB-1200)

SKU: BH-12 Category: Tag:

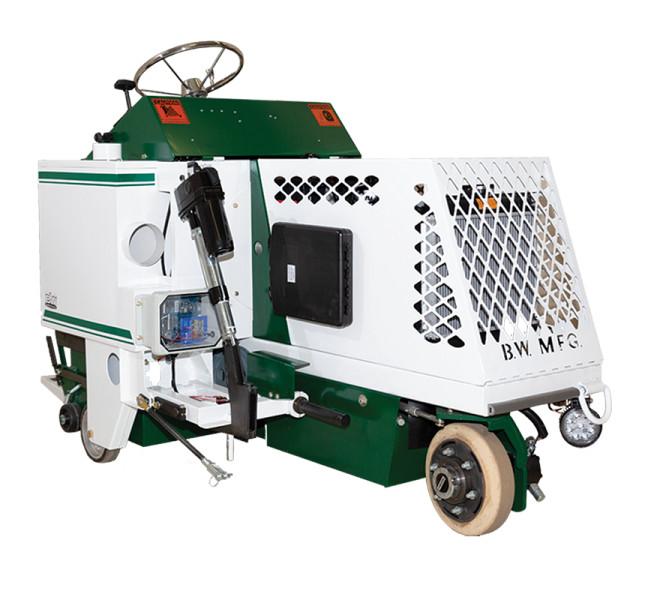

BW Manufacturing has produced the only mid-sized ride on surface preparation machine on the market. The SCB-1200 features a removable dust containment box with wheels for ease of dumping. One-handed operation controls for raising and lowering heads, grinder speed, and diamond/shot engagement. The interchangeable heads give you the mobility and versatility to switch applications in minutes. The state of the art BH-12 Shotblast Head attachment delivers a feathered blasting edge which enables each successive path to overlap without excessive penetration, omitting the “striping effect”. Easy blast wheel replacement eliminates costly downtime. The finished surface is ideal for thin-set applications, clear coatings, as well as having the power to give you an aggressive blast profile when needed.

  • Industrial Floors
  • Line Stripes
  • Bridge Decks
  • Airport Runways & Hangers
  • Parking Decks
  • Steel Decking
  • Highways
bh 12 demo
BH-12 Shot Blasting Head Attachment Product Demo Watch Video

Chassis Specification Sheet

Optional Interchangeable Heads: BH-12 Shotblast Head

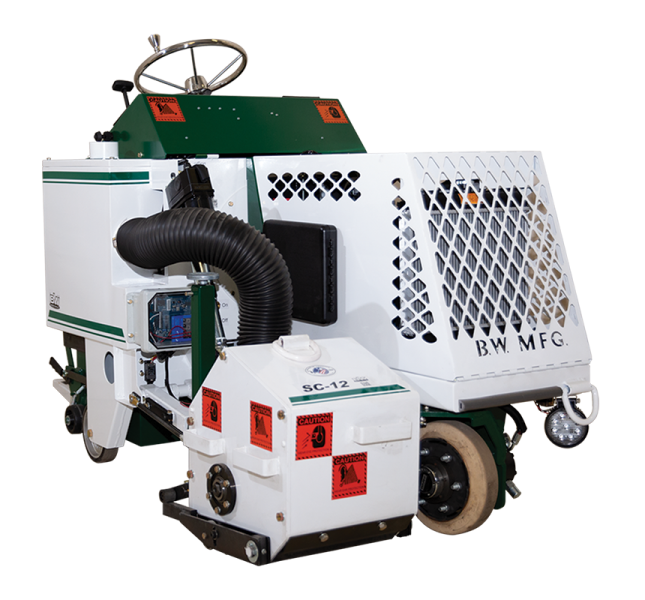

SC-12 Scarifier Head

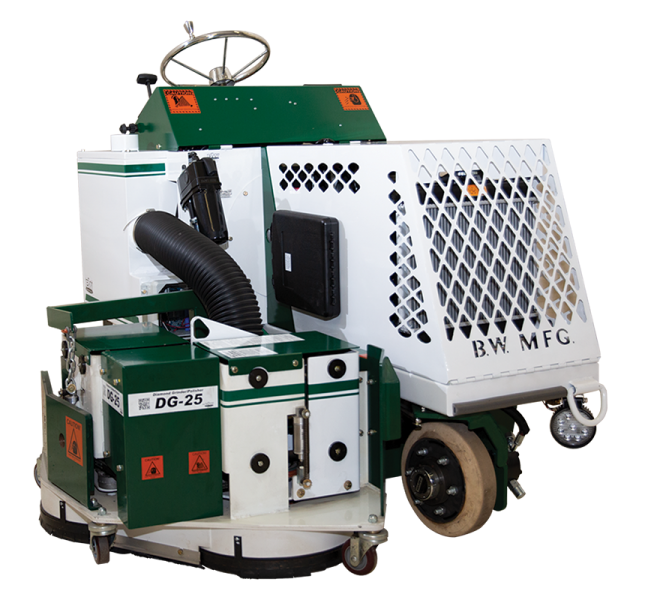

DG-25 Diamond Grinder/Polisher Head
BR-25 Magnet/Broom Head
Tires: Non-Marking
Length: 81″ (206cm)
Width: 35″ (89cm)
Height: 54″ (137cm)
Weight: 1200 LBS (544kgs)
Motor Options Kubota D902-E3B Tier IV 24.8hp Diesel
Electric Motor 25HP (230V-64Amp/480V-32Amp Three Phase)
Drive: Hydrostatic
Compressor: 4.5 cfm
Vacuum: 1480 cfm
Steering: Manual
Collector Capacity: 3.8 Cubic Feet
Minimum Aisle Width: 54″ (137cm) (Blastable or Grindable Width)

Blasthead Attachment Specification Sheet

Production Capacity: 2000 to 3000 Square Feet Per Hour (167 to 204 square meters per hour)
Cleaning Path: 12″ (30cm)
4″ (10cm) & 5″ (12cm) Line Stripe Adapter (Optional)
Width With Attachment: 36″ (91cm)
Shot Capacity: 100 LBS (45kgs)
Weight (without shot): 375 LBS (140kgs)
