BH-18 Shotblasting Head Attachment (for D-1800-FT4)

SKU: BH-18 Category: Tag:

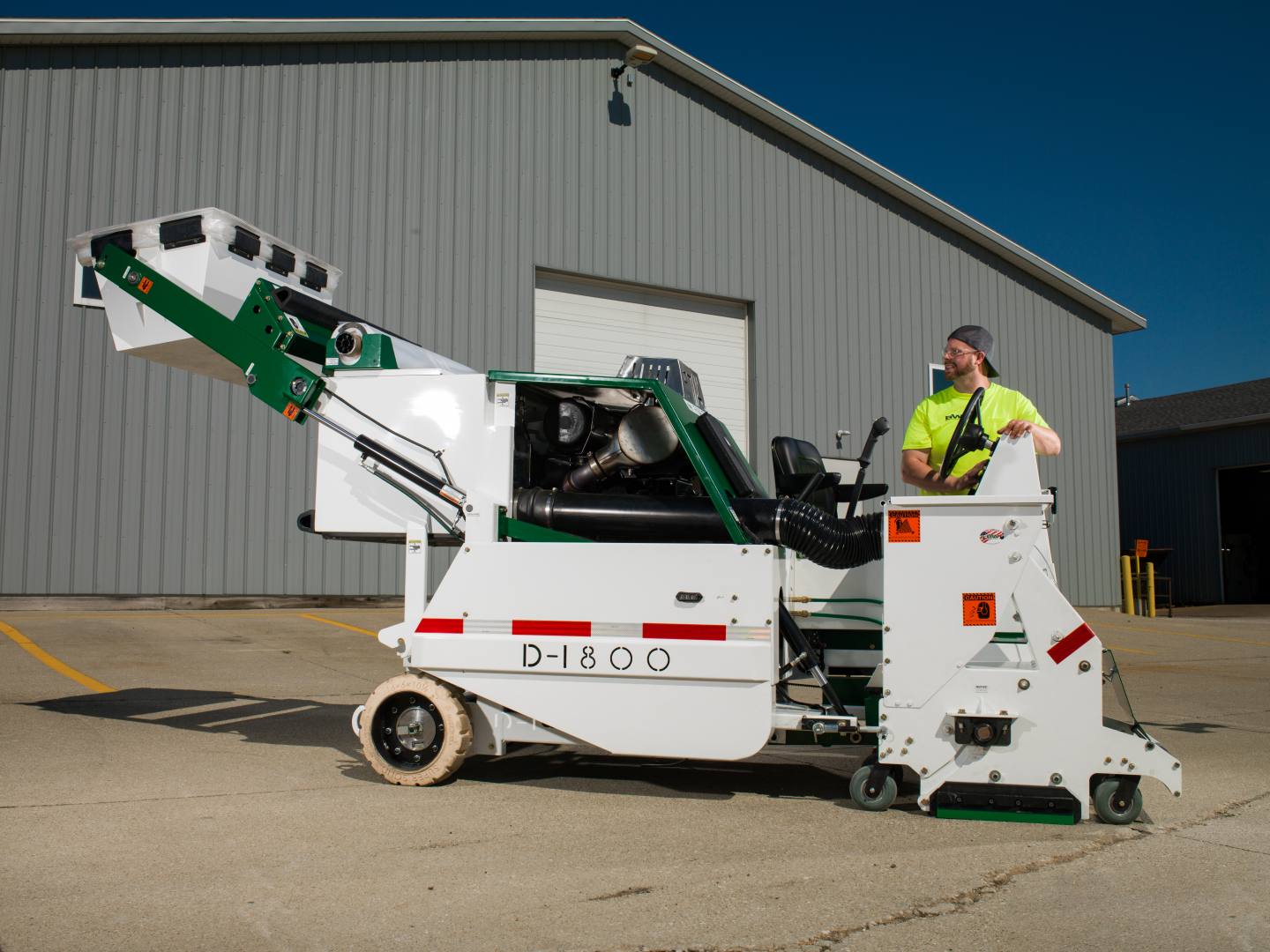

BW Manufacturing introduces the D-1800, the latest in state of the art surface preparation technology. The D-1800 is the response to years of contractor’s requests to solve the messy, time consuming issue of dust removal from the machine. The hydraulic dump box gives you the ability to dump a 55 gallons worth of material in seconds. Other features for the new D-1800 include a newly designed Blast Head. The BH-18 Blasthead features the same feathered blast pattern found in the BH-16 Blasthead while delivering increased production with a 2” wider path. Fully replaceable inner liners increase housing life. Cushioned swivel casters allow for easy maneuvering over flat surfaces. Also, newly designed seals, floater plates, and shot separator system allow for increased output and decreased shot consumption. Other chassis upgrades include a planetary gear drive for greater low-end torque and faster drive speeds. Newly formatted controls and seating position give the operator a better view in front and behind machine attachments. A new tilted hood allows easier access for maintenance as well as other internal advancements to decrease service intervals and increase production.

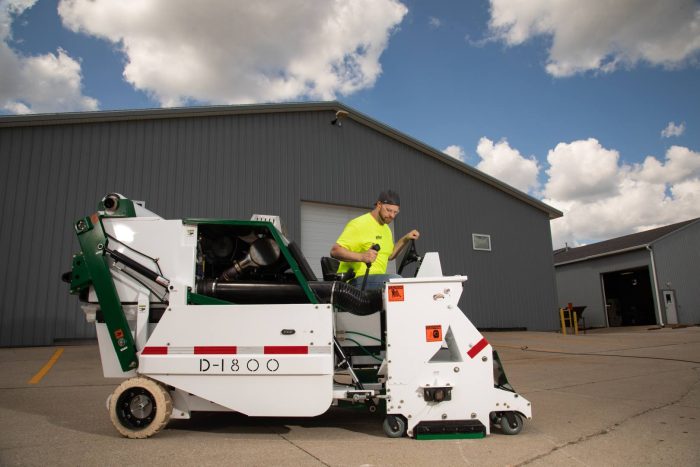

BWM D1800 BH18 Lifestyle 1034
Press Play

Chassis Specifications

Interchangeable Heads: Shotblast Head
Scarifier Head
Diamond Grinder/Polisher Head
Tires: Non-Marking
Length: 115″ (292 cm)
Width: 57″ (145 cm)
Height: 60″ (152 cm)
Weight: 4480 lbs (2032 kgs)
Engine: John Deere Final Tier-4 Diesel 73hp
Drive: Hydrostatic
Compressor: Liquid Cooled 13 cfm
Vacuum: 2280 cfm
Steering: Power
Collector Capacity: 6.5 cubic ft (.184 cubic meters)
Drive Wheel Width: 50″ (127 cm)
Wheel Base: 78″ (198 cm)

Shot Blast Specifications

Production Capacity: 3000 – 7000 square feet
Cleaning Path: 18″ (46 cm)
Width with Attachment: 56″ (142 cm)
Weight: 760 lbs (345 kgs)
Aisle Width Min: 78″ (198 cm) (blastable width)
  • Industrial Floors
  • Bridge Decks
  • Airport Runways & Hangers
  • Parking Decks
  • Steel Decking
  • Highways
